TurboFlex?柔性配电电缆96系列Glenair

发布时间：2023-01-30 16:46:17 浏览：1092

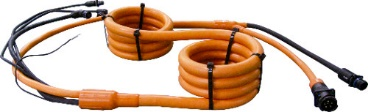

馈电电缆线给电缆线互连系统工程师造成了与众不同的挑战。它一般由刚性和非柔性导线制作而成，曲率半径特别大。这种电缆线重，布线比较困难，由于风化作用和受到磨损，护线套容易损坏。Glenair的TurboFlex?柔性配电设备电缆线由镀锡、镀镍、镀银铜制作而成的高股数绳绞内导线组合而成。这些高柔性导线与Glenair的高性能护线套相互结合TurboFlex?柔性配电设备电缆线特别适合需要灵活性、耐久性和重量减轻的应用。

惊人的耐久性——尤其是在寒冷的冬季-TurboFlex?电缆线使用Glenair的创新Duraelectric?绝缘化合物对极端环境、臭氧暴露、腐蚀性化学品、伽马辐射等形式的环境和机械性损伤具有优异的低烟无卤耐受性。在配电设备应用中，使用寿命长和性能至关重要。TurboFlex?柔性配电设备电缆线两者兼具柔性导线和耐用护线套。

Glenair连接器是全球知名的高端品牌，广泛应用于航天航空、军用、舰载、精密制造等场合。深圳市cq9电子官网入口创展科技有限公司，授权代理销售Glenair产品，并提供技术支持。欢迎咨询。

详情了解Glenair请点击：/brand/77.html

TurboFlex? Product Selection Guide
TurboFlex? Cable Type	Jacket Type and Cable Construction		Part No.	Page No.
TurboFlex? Copper Conductor (standard)	Duralectric? D accelerated UV/sunlight, fire, and ozone resistance and broad fluid and caustic chemical resistance	(.125" jacket)	961-001	8
		(.093" jacket)	961-002	9
		(.062" jacket)	961-003	10
		(.032" jacket)	961-004	11
		(2 layer jacket)	961-035	13
	Duralectric? D with fabric overbraiding for superior abrasion / temperature protection		961-044	14
	Duralectric? D with conductive braided ground shield for high-power applications		961-007	16
	Duralectric? D with ground shield and conductive silicone for high voltage / high power		961-056	18
	Duralectric? L (lightweight) formula for weight savings and abrasion protection		961-041	20
	Duralectric? K for ultra-low temperature flexibility and gamma radiation resistance		961-033	22
	Duralectric? F for resistance to jet fuels and oils plus low-temperature flexibility		961-051	23
UL recognized TurboFlex? Standard Copper Conductor	Duralectric? D accelerated UV/sunlight, fire, and ozone resistance and broad fluid and caustic chemical resistance		961-065	24
TurboFlex? TURBOFLEX? APPL	Duralectric? D (see description above)		961-010	12
TurboFlex? TURBOFLEX? APPL	Duralectric? L (lightweight) formula for weight savings and abrasion protection		961-042	21
