CS-034-040.0M晶体谐振器Connor-Winfield

发布时间：2024-05-06 09:17:05 浏览：1998

Connor-Winfield CS-034-040.0M晶体谐振器是一款基本的、at切割的40MHz石英晶体谐振器，采用3.2x2.5mm表面安装封装。该型号被设计用于合成器应用中作为参考晶体。以下是其主要特点：

- 频率：40.0兆赫

- 频率稳定性：+/-50 ppm

- 温度范围：-40 ~ 85℃

- 封装形式：表面贴装

- 包装方式：胶带和卷轴包装

- 环保标准：符合RoHS标准，无铅设计

规格参数：

Electrical Specifications
Paramete		Minimum	Nominal	Maximum	Units		Notes
Output Frequency			40.0		MHz
Operation Mode			Fundamenta
Cut			AT Cu
Frequency Calibration (@25±3		℃)-30		30	ppm
Frequency Stability vs.lemp		50	=	50	Dpm
Operating Temperature Range		-40		85	*C
Load Capacitance:(CL			10		pF
Equivalent Series Resistance				25	Ohms
Drive Leve				100	uW
Insulation Resistance		500	=		Mohm		100 Vdc
Aging				±3	ppm/Year

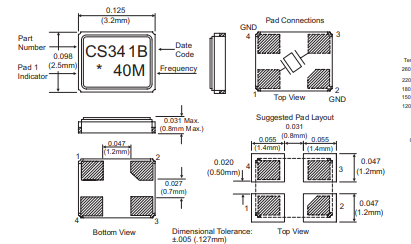

Package Characteristics
Package Storage Temperature:	Hermetically -55		sealed ceramic	3.2x2.5mm 125	SMD	Package. C
Ordering Information:	CS-034-040.0M
